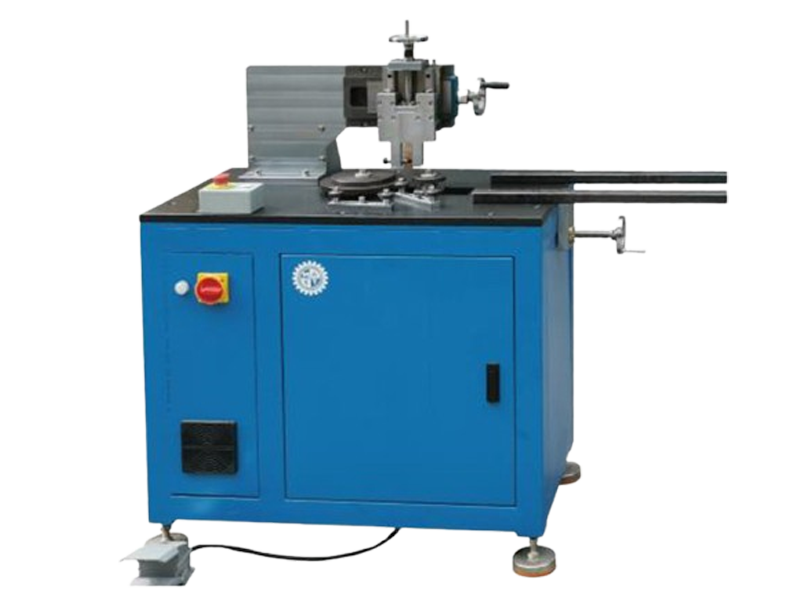

This is a machine that produces double jacket gaskets; this machine can do such job, make U shape, and close the both edges by two steps; semi-automatic mode; processing range 250mm-3500mm; simple machine operation.
| Type | MDJ-23S |
| Machine profile | 1550*500*1200mm |
| Net weight | 320 KG |
| Power supply | 0.75 KW |
| Drive motor | 0.75 KW |
| Voltage | 380 V |
| Work mode | Semi-automatic |
| Ring Size | 10"-3500 mm |
| Max Thickness | 0.8 mm |
| Line Speed | 0-200 mm/s |
| Material suited | SS & Alloy |
1. Small Double Jacket Machine is special designed for making small sizes of gasket.
2. Small size normally can not be bended due to softness, so small sizes are made from ring cut off by laser or plasma cut machine, then make U shape, then fill in graphite strips, and close both edges.
3. The double jacketed gasket machine can do such job, make U shape, and close the both edges by two steps.
