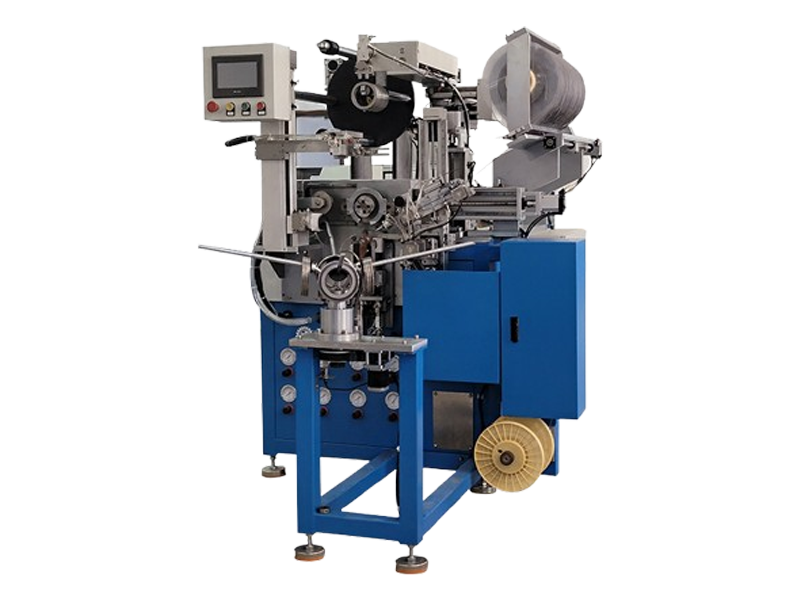

This is an automatic winding pad equipment. The automatic transmission of graphite is automatically cut off, and the steel strip can be automatically transported and automatically cut; basic gaskets can be produced, or inner ring gaskets can be produced; the range is from 1.5 inches to 6 inches; 600 inner rings and 40 plates of graphite can be loaded at a time, and one plate of graphite can be automatically switched to the next plate; take 3 inches as an example, the processing time of a single piece is about 20 seconds; the equipment is easy to change and operation.
| Type | MV-01B |
| Machine profile | 1550*2000*1800mm |
| Power supply | 3 phase 380 V |
| Drive motor | 750 W Servo motor |
| Working mode | Automatic |
| Work range | ASME standard 1/2"to 6" |
| Standard suitable | Suitable for all standards |
| Gasket type can make | Basic type and inner ring type |
| Standards | All standards |
| Cycle time | 20 seconds for 3" gasket |
| Change over time | From 5 to 10 minutes |
| Fully automatic process control | Both type |
| Inner ring loading & unloading | Automatic |
| Inner ring loading capacity | 560 pieces |
| Gasket ejection | Yes |
| Parameter setting storage | Save 500 sets |
| Filler break sensor | Yes |
| Steel former | Yes |
| Strip feeding and cut off | Automatic |
| Filler feeding and cut off | Automatic |
| Filler load capacity | 40 pancakes |
| Filler pancake shift | Automatic |
| Strip protection | Optional |
| Flange width measuring | Yes |
Filler control by wraps | Yes |
Steel strip spool support | Yes, one charge 15 kg |
1. Deployed with automatic inner ring feeding system, this type of machine can make both basic type and inner type of gasket fully automatically.
2. Use PLC programmed process control, and servo motor as driver, precisely control the whole winding process.
3. Build in strip former, use flat strip on bobbin with motor driven uncoil.
4. Build with a welding robot, make all welding points reliable and even
5. Deployed an automatic flange width measuring device, make gasket OD very accurate, and you can choose having a strip tail or welding to the end, e.g without tail of strip.
6. The fully automatic winding machine features large memory storage, can save over 500 sets of parameter settings for different sizes and press classes. Each type of gaskets will be given a product code, whenever you want to make it, you only need to change the product code, then all parameter settings for this type will be ready to produce, save time from repeative parameter setting.
7. Build with steel strip automatic feeding and automatic cutting off.
8. Build with graphite tape automatic feeding and automatic cutting off.
9. Build in graphite detector, the machine will automatically stop in any cases such as graphite break or run out.
10. The most controlling electronic components such as PLC, relay are all high quality international brands. This gaurantee the machine’s relieability and productivity.
