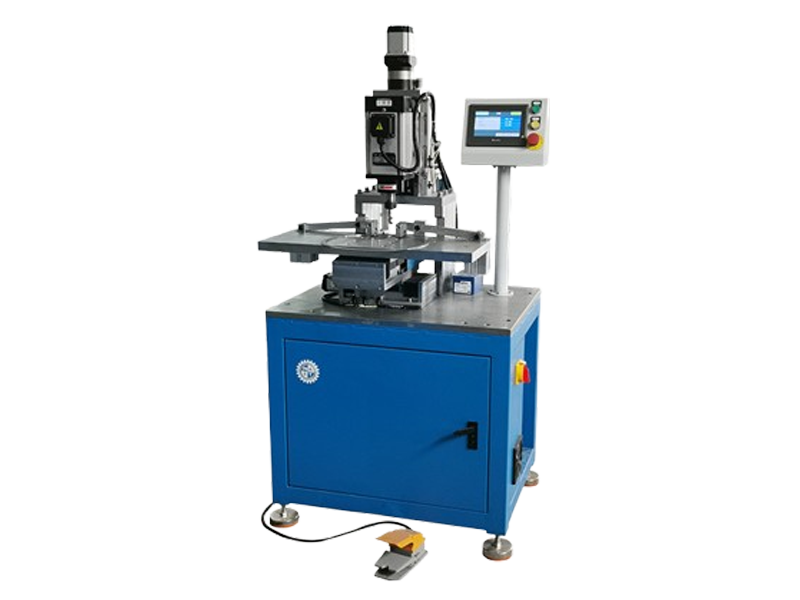

This is a machine specially designed for the welding joint waste height treatment of the guide ring and inner ring. the processing method is milling—the ring grinding machine can mill both the plane and the inner and outer arc; the machining range is 3 inches and above; the thickness of the workpiece is 2mm-5mm; the maximum width of the workpiece is 60mm; the PLC program control is simple to operate; the processing time of a single piece is 15-20 seconds, which is very efficient; it is suitable for stainless steel and carbon steel; the machine is stable and reliable.
| Type | MWG-15 |
| Profile | 850*620*1700mm |
| Net weight | 290KG |
| Power Supply | 1.1KW |
| Voltage | 380V |
| Size scale | 3" and above |
| Thickness | 2-5 mm |
| Maximum width | 60 mm |
| Cycle time (one side) | 15-20 Seconds |
| Work mode | Semi-automatic |
| Process control | PLC programmed |
| Ring load and unload | Manual |
| Thickness adjustable | Automatic |
1. Special designed for remove the surplus of ring welding bead, inlcuding two surfaces and two beads on OD and ID;
2. Two step process, first step remove the surplus on up-side surface, OD, then second step remove the surplus on down side surface and ID.
3. The ring grinding machine features process controlled by PLC, the ring forming machine complements it in ring processing, suitable for both stainless steel and carbon steel, all sizes of inner ring and guide ring;
4. With pneumatic cylinder controlling clamp, quick load and unload rings.
