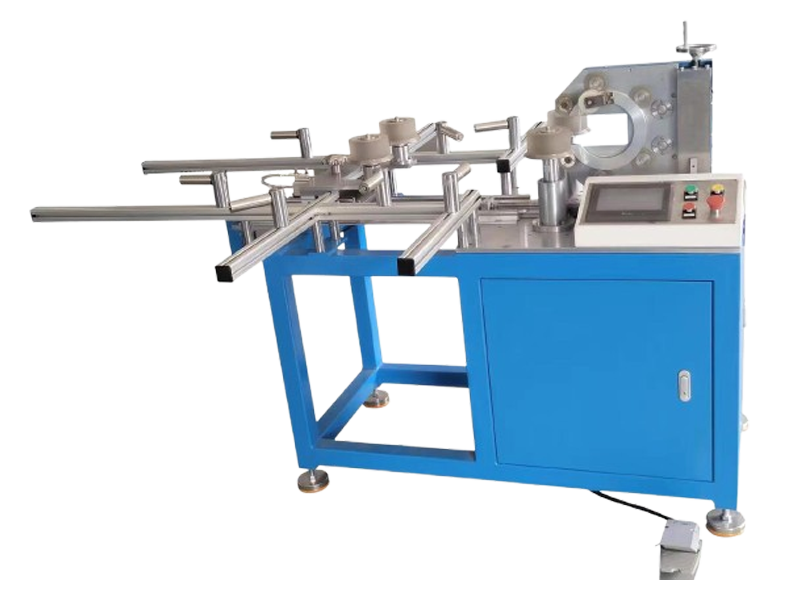

This is a packaging gasket machine with a packaging range of 4 inches to a diameter of 1500mm; the packaging film quick change design is simple and efficient to operate; 1-10 different number of gaskets can be packaged; gaskets with and without clips can be packaged; the machine is stable and reliable.
| Type | MW-18 |
| Profile | 2050*1550*1300mm |
| Net weight | 200KG |
| Power Supply | 1KW |
| Voltage | 380V |
| Size scale | 4"–60" |
| Film thickness | 0.1 mm |
| Max wrap width | 50 mm |
| Wrapping line speed | 25mm/S |
| Process control | Automatic |
1. Film wrapping machine, wrapping the lager sizes of gasket from 4”-60”
2. The gasket packing machine operates in semi-automatic mode, operator load the gaskets, then machine do all rest of work, then cut off film and take off the gasket;
3. Very productive, roughly about 3-5 times quicker than hand wrapping.
4. Set up OD of gasket, then machine automatically find the work position.
