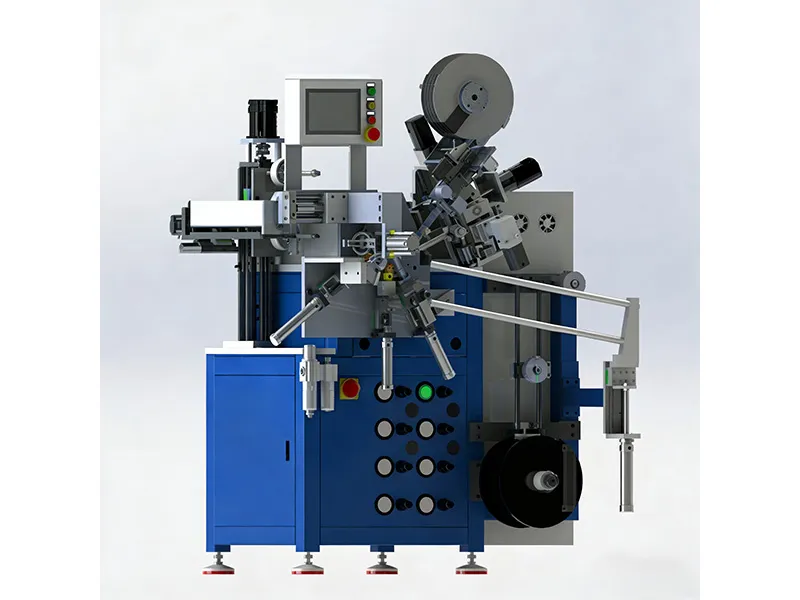

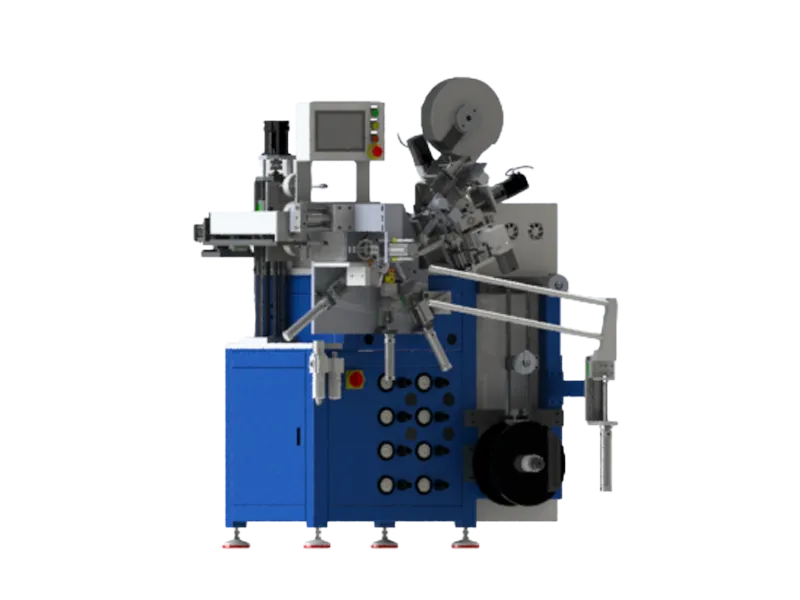

| MV-01S Fully Automatic Winding Machine Specification | |
| Machine profile | 1127*1170*1655mm |
| Power supply | 3 phase 380V(Adjustable) |
| Overall power | 5.5 KW |
| Working mode | Fully automatic |
| Work range | ASME standard 1/2"to 2" |
| Standard suitable | Suitable for all standards |
| Gasket type | Basic type and inner ring type |
| Cycle time | Less than 20 seconds for 1"gasket |
| Change over time | From 5 to 10 minutes |
| Process control | PLC programmed automatic control |
| Graphite loading capacity | 10 Pancakes |
| Inner ring loading capacity | 240 Pieces |
| Welding | Automatic |
| Gasket ejection | Yes |
| Parameter setting storage | Memory can save 500 sets of para |
| Filler break sensor | Yes |
| Steel former | Yes |
| Strip feeding and cut off | Automatic |
| Filler feeding and cut off | Automatic |
| Strip protection | Optional |
| Flange width measuring | Yes |
| Filler control by wraps | Optional |
| Steel strip spool support | Yes,one charge 15-20kg |
1. This is specially designed for making small sizes of spiral wound gaskets, from 1/2 inch to 2 inchs, work mode fully automatic, make both basic type and inner type of gasket. Inner ring load capacity 240 pieces;
2. Use PLC programmed process control, and servo motor as driver, precisely control the whole winding process.
3. Build in strip former, use flat strip on bobbin, weight capacity 15-20kg.
4. Build with a welding robot, make all welding points reliable and even
5. Deployed an automatic flange width measuring device, make gasket OD very accurate；
6. With large memory storage, can save over 500 sets of parameter settings for different sizes and press classes. Each type of gaskets will be given a product code, whenever you want to make it, you only need to change the product code, then all parameter settings for this type will be ready to produce, save time from repeative parameter setting.
7. Build with steel strip automatic feeding and automatic cutting off.
8. Build with graphite tape automatic feeding and automatic cutting off, one charge can load 10 pancakes of graphite tape.
9. Build in graphite detector, the machine will automatically stop in any cases such as graphite break or run out.
