This is an automatic cushion equipment—the fully automatic winding machine integrates graphite automatic transportation/cutting and steel belt automatic forming/cutting in one system. The graphite is automatically transported and cut, and the steel belt is automatically formed and automatically cut. It can produce basic gaskets or inner ring gaskets. It can range from 1.5 inches to 6 inches of gaskets. 150 inner rings and 9 plates of graphite can be loaded at a time, and a plate of graphite is automatically switched to the next plate. For example of 3 inches, the processing time of a single piece is about 20 seconds. The operation of the equipment is simple.

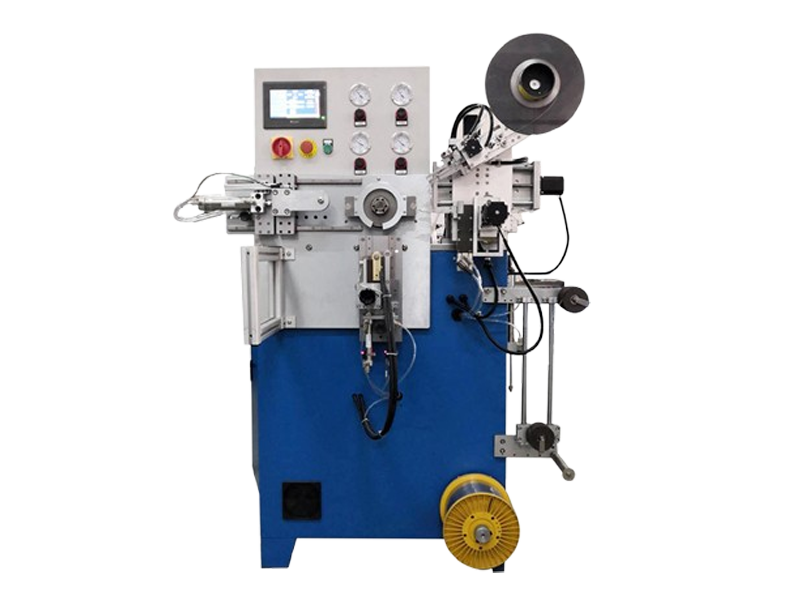

| MV-01A Fully Automatic Winding Machine | |||
| A | 1 | 2 | 9 |
| B | 2 | 2 | 6 |
| C | 3 | 3 | 3 |
| Type | MV-01A |
| Machine profile | 1400*1050*1800mm |
| Power supply | 3 phase 380 V |
| Drive motor | 750 W Servo motor |
| Working mode | Automatic |
| Work range | ASME standard 1/2"to 6" |
| Gasket type | Basic & inner ring type |
| Standards | All standards |
| Cycle time | 20 seconds for 3" |
| Change over time | From 5 to 10 minutes |
| Fully automatic | Basic type |
| Inner ring loading | Manual |
| Loading capacity | No |
| Gasket ejection | Yes |
| Parameter storage | Save 500 sets |
| Filler break sensor | Yes |
| Steel former | Yes |
| Strip feeding & cut | Automatic |
| Filler feeding & cut | Automatic |
| Filler load capacity | 8 pancakes |
| Filler pancake shift | Automatic |
| Strip protection | Optional |
| Flange width measuring | Yes |
| Filler control | By wrap |
Steel strip spool support | Yes, one charge 15 kg |
1. This machine can make both basic type and inner type of gasket, under process making basic type, machine can run fully automatically. Under process making inner ring type of gasket, all need to do is underloading rings and unload windings as it finished.
2. The fully automatic winding machine uses PLC programmed process control, and servo motor as driver, precisely control the whole winding process.
3. Build in strip former, use flat strip on bobbin with motor driven uncoil.
4. Build with a welding robot, make all welding points reliable and even
5. Deployed an automatic flange width measuring device, make gasket OD very accurate, and you can choose having a strip tail or welding to the end, e.g without tail of strip.
6. With large memory storage, the fully automatic winding machine can save over 500 sets of parameter settings for different sizes and press classes. Each type of gaskets will be given a product code, whenever you want to make it, you only need to change the product code, then all parameter settings for this type will be ready to produce, save time from repeative parameter setting.
7. Build with steel strip automatic feeding and automatic cutting off.
8. Build with graphite tape automatic feeding and automatic cutting off.
9. Build in graphite detector, the machine will automatically stop in any cases such as graphite break or run out.
10. The most controlling electronic components such as PLC, relay are all high quality international brands. This gaurantee the machine’s relieability and productivity.
