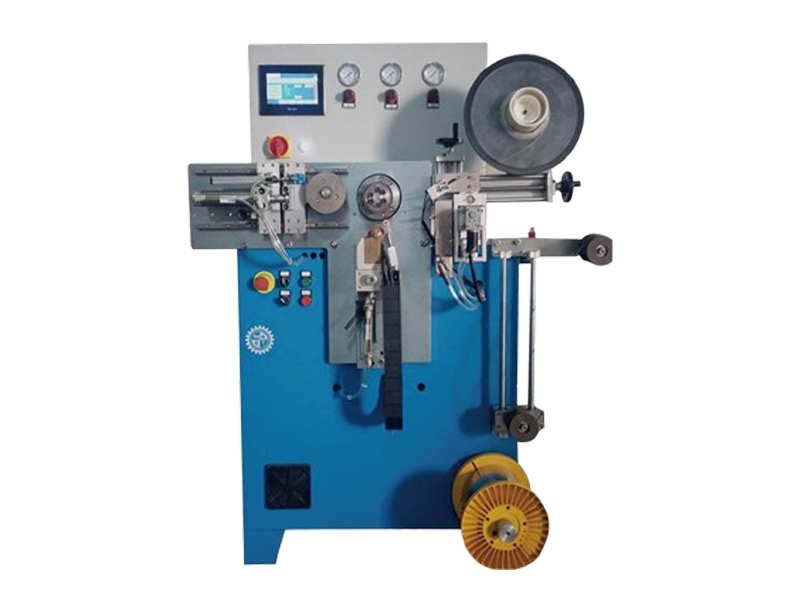

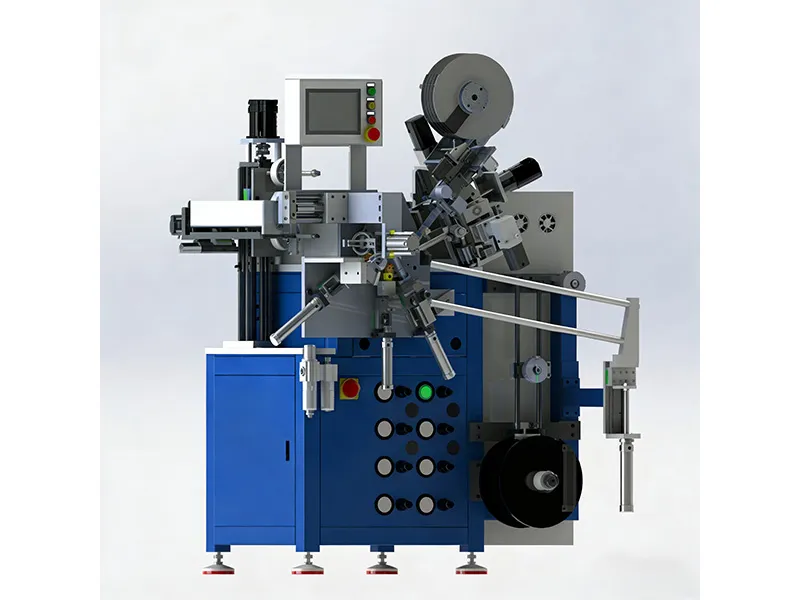

The MV-01 Vertical Winding Machine delivers high-speed, near-automated production, featuring an automatic steel cutter, PLC-controlled operation (300+ preset programs), and synchronized wire forming/winding—our vertical winding machine eliminates pre-forming steps to streamline production. With a cycle time of 20–25 seconds for 4' 150/300 gaskets, it boosts productivity. The auto-welding system in our vertical filament winding machine ensures strong, even joints, while the filler break sensor and buffered strip feeding reduce downtime. Precision dimensional control (±0.2mm OD tolerance) and 15–20kg wire capacity enhance efficiency. This ergonomic, multilingual (English/Chinese) machine handles 1/2” to 12” gaskets, with/without inner rings, ideal for oil & gas and power industries.
| Type | MV-01 |
| Machine profile | 1500*1000*1550mm |
| Power supply | 3 phase 380V |
| Drive motor | 1.1 KW |
| Working mode | Semi-automatic |
| Work range | ASME standard 1/2"to 10" |
| Gasket type | Basic & inner ring type |
| Standards | All standards |
| Cycle time | 20 seconds(3" gasket) |
| Change over time | From 5 to 10 minutes |
| Process control | Programmed by PLC |
| Material feeding | Manual |
| Welding | Automatic |
| Gasket ejection | No ejection |
| Strip tension | Adjustable |
| Parameter setting capacity | Save 500 sets of para |
| Filler break control | Yes |
| Steel former | Pressure adjustable |
| Steel Auto cut off | Yes |
| Strip automatic feeding | Yes |
| Strip automatic cut off | Yes |
| Flange width measuring | Yes |
| Steel strip capacity | 15-20kg |
| Filler load capacity | 6-8 pancakes |
1. With automatic steel cutter, the vertical winding machine is almost full automatic except wire and graphite feeding, achieve much higher productivity and reliability. Use 4’ 150/300 as example, cycle time can reach 20 to 25 seconds.
2. Use PLC control, up to 300 sets of parameters can be saved into the machine, so operator can easily select the product type, then start the production right way, save lots of time from setting the parameters each time.
3. The spiral wound gasket machine provides both English and Chinese, we can also provide other language version as per customers’ request.
4. Wire forming and winding synchronize, save one step of wire pre-forming compare to the old generation of machine. Furthermore, one charge can load 15-20 kg of wire, saves lots of material change over time.
5. Automatic welding saves great deal of working time, moreover, makes welding points strong and reliable, and welding span even.
6. Configured filler material break sensor, machine automatically stop when the filler breaks or run out, allows you connect the filler and run the rest of process.
7. Automatic dimensional control, make OD variation very small, +/-0.2 mm tolerance, so it significantly improves the assembly efficiency.
8. Successfully use man-machine engineering principle, layout all often use operation within arm-reach area, easy operator’s work.
9. Good compatibility, one machine can make 1/2’ to 12’ sizes, both types of gasket with and without inner ring.
10. Strip feeding system built-in a buffering mechanism, which easies the tension of the strip.
