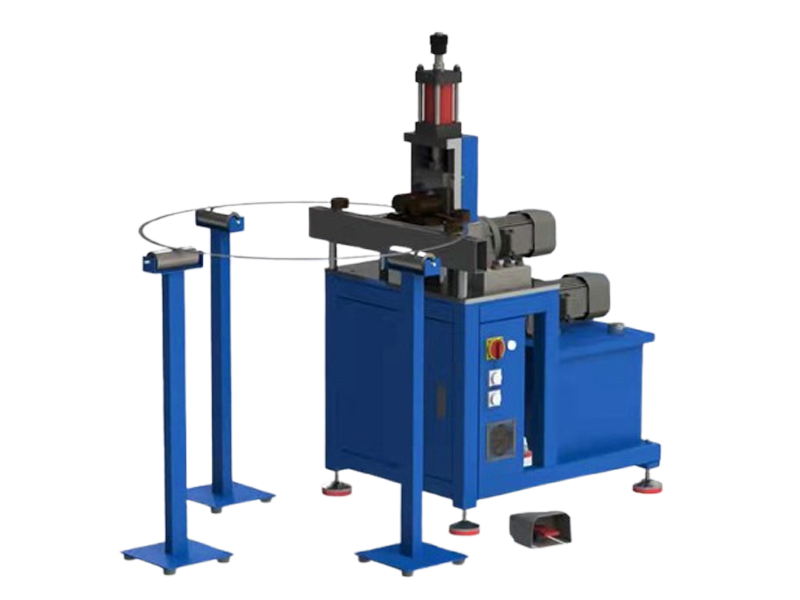

This is a machine that levels the guide ring and the inner ring. At the same time, it can also remove the internal stress of the product; the processing range is from 200mm-3000mm in diameter; the thickness of the workpiece is 2mm-5mm, and the width is 5mm-50mm; with the use of hydraulic power, the working process is smooth and reliable; it can be applied to stainless steel and carbon steel; the operation is simple and efficient.
| Type | MRF-24 |
| Profile | 920*800*1600mm |
| Net weight | 250KG |
| Driven motor | 1.5KW |
| Hydraulic pump | 3.5KW |
| Voltage | 380V |
| Work mode | Semi-auto |
| Size scale | 200-3000mm |
| Thickness | 2-5 mm |
| Flange width | 5-50 mm |
| Line speed | 0-200 mm/s |
| Material suited | CS/SS |
1. MRF-24 Machine is specially designed for flattenning the inner ring or guide ring, especially for those bended and welded rings, normally those rings will be more or less deformed after bending and welding, and contain internal stress, the ring forming machine can help flattenning the ring’s deformation and release the internal stress;
2. Use hydraulic power pack as press force, make flatten process semi-automatic, the operator only need to load the ring and press “start” button.
