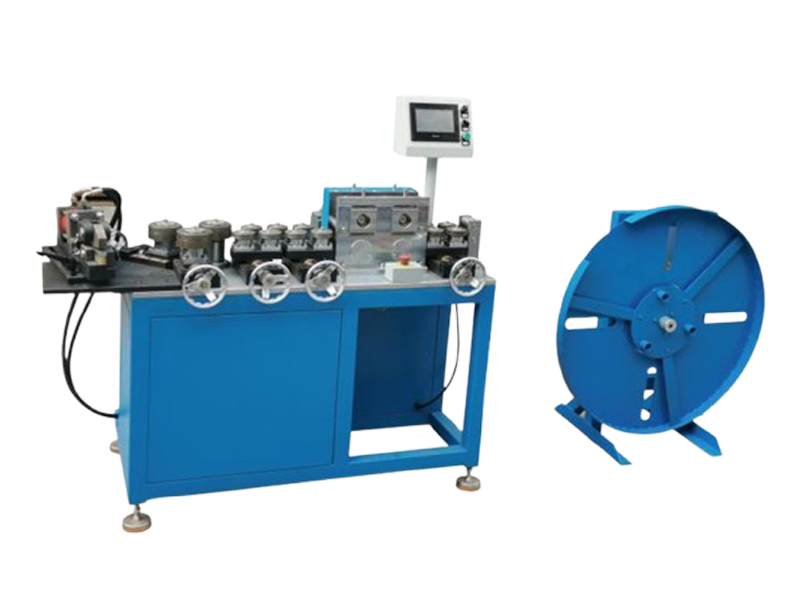

This is a device that coils steel bars into rings, which greatly improves the utilization rate of materials; the production range is from 200mm-3500mm in diameter; the automatic ring bending machine uses a servo motor to control the diameter size of the bending ring, with high dimensional accuracy and good consistency; hydraulic power is used to automatically cut steel bars; PLC control, easy to operate, stable and reliable.
| Type | MRB-08A |
| Machine Profile | 1900*1100*1420mm |
| Power Supply | 380V 50HZ |
| Drive Motor | 3.7 KW |
| Main Shaft RPM | 36 RPM |
| Linary Speed | 0-200 mm/s |
| PLC Controlled | Yes |
| Bending Wheel Diameter | 120 mm |
| Work Range | 200-3500 mm |
| Thickness | 3-5 mm |
| Width Range | 5-30 mm |
| Cycle Time | 5 S/Piece(8") |
| Accuracy | ±0.3 mm |
| Volume count | yes |
| Uncoiler | yes |
1. It is designed to bend all sizes of guide rings and inner rings from 200mm up to 3.5 meters’ diameter, with this machine, you can make ring much more efficient and very much cost effective because the material utilization will be much higher;
2. Major processes include straighten, bending and cutting off. The automatic ring bending machine can accomplish all those processes in one integrated system, and the fully automatic winding machine complements it in the gasket production line.
3. PLC programmed process control, make very precise diameter, and very easy to operate.
4. Hydraulic power pack automatically cut off the bended rings.
5. Interface allow people to set up parameters, display necessary production information, such as ring size, line speed, production volume and so on.
