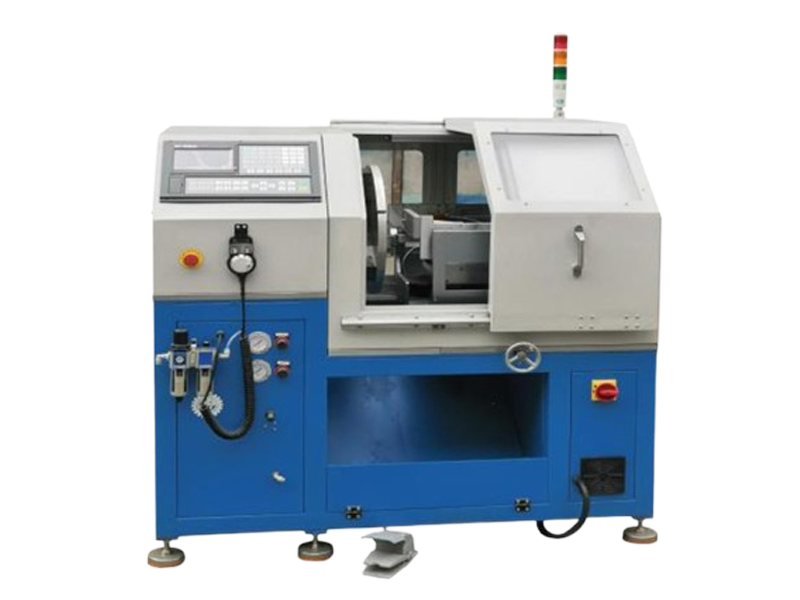

This is a machine that produces small-sized wave tooth pads, with a processing range of 20mm-500mm in diameter; workpiece thickness 3mm-5mm; maximum width of workpiece 60mm; unique vertical pressing mechanism, which overcomes workpiece deformation to the greatest extent and improves processing accuracy; PLC program control, control accuracy high; the servo motor controls the tool feed, and the product consistency is good; the operation is simple; after replacing the cutter head, the outer ring milling groove and the inner ring chamfer can also be processed; the machine is stable and reliable.
| Type | MK-03S |
| Profile | 1600*900*1700mm |
| Weight | 560 KG |
| Power | 4.5 KW |
| Voltage | 380V Adjustable |
| Process control | Numberical control system&PLC programmed |
| Servo motor | Servo motor control cut |
| Work range | 1/2"-16" |
| Material suited | CS SS, Alloy |
| Thickness scale | 3-5mm |
| Max Flange width | 60mm |
| Work height | 930mm +/-50mm |
| Camprofile type | All types of Camprofile |
| One side CT | 3-5 minutes (500mm) |
| Setup time | 2-5 minutes |
| Load & Unload | Manual |
| Process | Side by side |
| Linar speed | 80 - 120 m/minute |
| Cooling | Vortec air cooler |
| Air comsuption | 0.8 m³/min |
1. MK-03S is special designed machine for making small sizes of Camprofile gasket，work range from ½ inch to 18 inch;
2. With Numeric control system make process fully automatic except ring loading and unloading;
3. It can make all types of Camprofile machine, the kammprofile machine works with our MK-03 Camprofile machine provide customers full sizes range Camprofile gasket producing capability.
5. Work mode is basically like a CNC lathe, with pneumatic jaw, the operator can load and unload ring quickly.
6. Deployed horizontal press device, which is very useful when you process 200mm-450mm diameter rings, horizontal press device can eliminate the ring’s deformation, therefore ensure the Camprofile quality.
