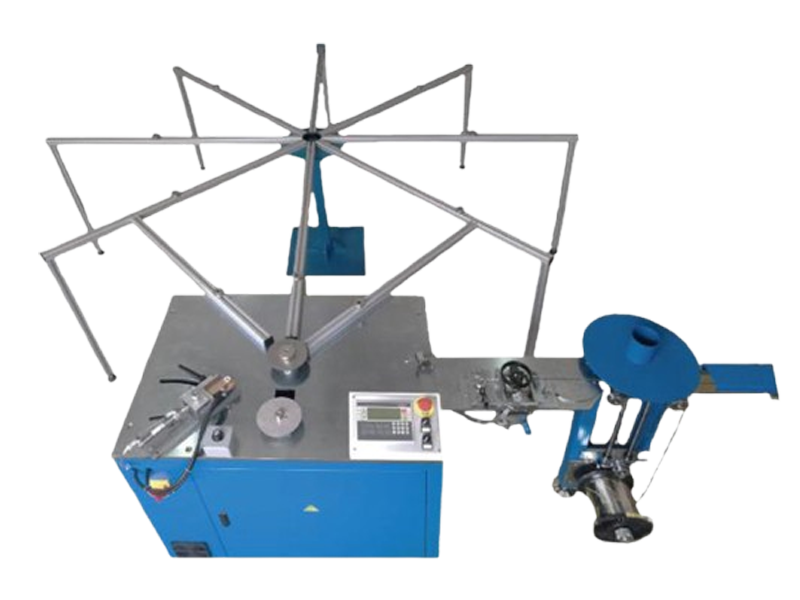

This is the horizontal winding machine, a device specializing in the production of large-size gaskets, ranging from DN300mm to 3500mm; semi-automatic operation mode; steel strip booster mechanism, steel strip automatic cutting; simple operation, stable and reliable operation.
| Type | MH-02 |
| Machine profile | 4000*3500*1100mm |
| Voltage | 3 phase 380 V |
| Drive motor | 1.1 KW |
| Driving power | Variable frenquency motor |
| Working mode | Semi automatic |
| Size | 12" up to 3500mm |
| Filler Material | Multiple filler material |
| Gaskets type | Standard and inner ring gasket |
| Standards | All standards |
| Cycle time | 60S for a 16" gasket |
| Change over time | 5 to 10 minutes |
| Process control | Programmed by PLC |
| Material feed and cut off | Manually |
| Automatic Welder | Yes |
| Filler break control | Yes |
| Steel form assistant | Yes |
| Steel former | Yes |
| Flange width measuring | Yes |
| Steel spool support | Load up to 15 kg strip |
| Filler Plate support | Load over 6-8 pancakes |
1. Making big size of gaskets (12" to 3500mm) and having the flexibility of making standard and inner ring gasket.
2. Automatic welding saves great deal of working time, moreover, makes welding points strong and reliable, and welding span even. The horizontal winding machine offers one switch shift between automatic and manual welding.
3. The spiral wound gasket machine features automatic dimensional control, make production more efficient.
4. Filler material break sensor, machine stop when the filler break or run out.
5. One charge can load 15 to 20 kg wire, saves a lot of working time, especially on making big size gaskets.
6. Wire forming and winding synchronize, save one step of wire pre-forming compare to the old generation of machine.
7. Wire form assistant, which easies tension of wire, make perfect flat gasket no meter how wide of the flange.
8. One charge can load 15 to 20 rolls of graphite, with height adjustable graphite holder.
9. Successfully use man-machine engineering principle, layout all often use operation within arm-reach area, makes operator’s work easier.
