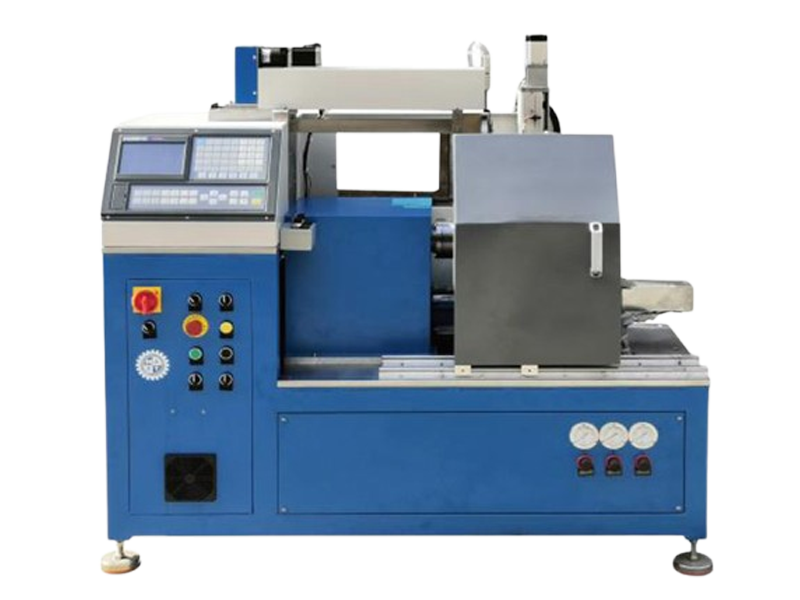

This is a multi-functional and fully automatic machine, which can not only mill the guide ring milling groove and the inner ring chamfer, and can also process kammprofile; the machining range is from 0.5 inches to 6 inches; fully automatic control, the operator only needs to load 150 rings at a time，an operator can take care of 3-4 machines; standard CNC blades are used; the machine is stable and reliable.
| Type | MGB-22A |
| Profile | 1600*1100*1600mm |
| Net weight | 490KG |
| Power Supply | 2.5KW |
| Voltage | 380V |
| Size scale | 1/2"-6" |
| Groove & Chamfer | Double function |
| Thickness | 3-5 mm |
| Flange width | 5-20mm |
| Cycle time | 6-8 seconds |
| One charge load | 150 Rings |
| Material suited | CS/SS |
| Cooling | Vortec Air Cooling |
1. This is multiple function machine, it can do both guide ring grooving and inner ring chamfering as well as Camprofile gasket;
2. Work mode fully automatic, user only need to load rings to the machine, one charge can load 150 rings, then pick up right program, and press “start” button, the fully automatic winding machine can run fully automatically;
3. Use standard cut insert, so as consuming parts it is very easy available at customers’ local market;
4. Need fixtures for each size of rings, grooving and chamfering fixtures are different, inner ring and Camprofile gasket fixture are all held from inside, while the guide ring is clamped from outside of ring.
