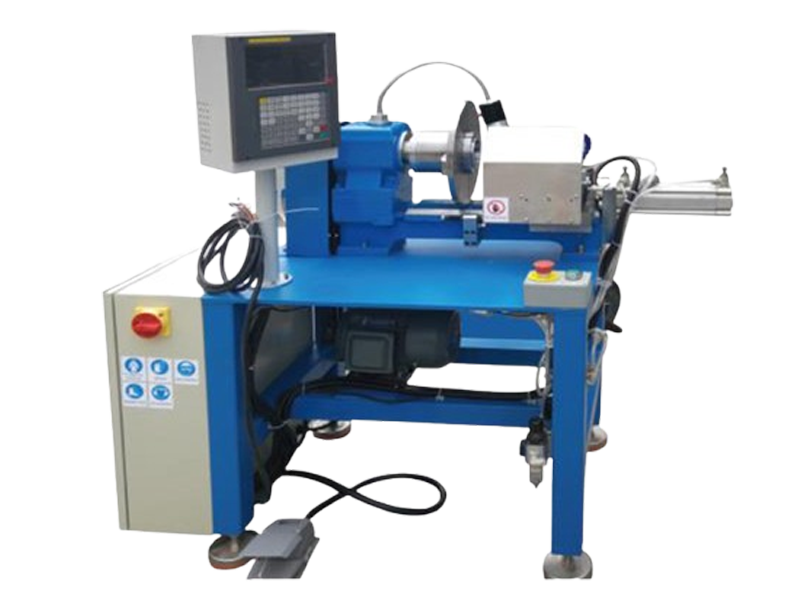

This is a dual-function machine, which can be used for both guide ring milling grooves and inner ring chamfering; the processing range is from 0.5 inches to 6 inches; the semi-automatic operation mode is simple and convenient, the operator does not need experience, and the processing process is automatically completed by the numerical control system; the use of pneumatic chucks and special tooling fixtures can quickly load and unload workpieces; the machine is stable and reliable.
| Type | MGB-12S |
| Profile | 1100*580*1400mm |
| Net weight | 210KG |
| Motor power | 2.5KW |
| Voltage | 380V |
| Chamfer | Yes |
| Groove | Yes |
| Work mode | Semi-automatic |
| Ring load & unload | Manually |
| Inner ring range | 1/2"-6" |
| Guide ring range | 1/2"-6" |
| Thickness | 2-5 mm |
| Flange width | 5-50 mm |
| Cut linar speed | 500 mm/s |
| Cycle time | 10 S （150mm） |
| Material suited | CS/SS |
1. Double function machine, it can do both guide ring grooving and inner ring chamfering, both grooving and chamfering can be done in one signal process. See below pics show 2 types of cut holder, one is chamfer blade, one is groove blade.
2. The ring forming machine features PLC programmed process control, all need to do are loading and unloading ring, very productive machine, need no skills for operator.
3. Use standard cut insert, so as consuming parts it is very easy available at customers’ local market.
4. Need fixtures for each size of rings, grooving and chamfering fixtures are different, inner ring is held from inside, while the guide ring is clamped from outside. Details please see the below Pic 2 and Pic 3.
