This is a device for automatic assembly of the guide ring. On one side is the guide ring feeding station, and on the other side is the winding body feeding station; the guide ring is turned into a conical mold, and the guide ring is flattened; the operation is simple, and the operator does not need work experience; the assembly range ranges from 1.5 inches to 8 inches; the single assembly time is about 10 seconds, which is very efficient.
| Type | MGA-20A | Profile(L*W*H) | 2950*2640*2400mm |
| Net weight | 1240KG | Voltage | 380V |
| Size scale | 1/2"-8" | Suitable for all standards | Yes |
Process control | PLC program | Work mode | Fully automatic |
| Compress | Pressurized oil-air cylinder | Maximum pressure | 5T |
| Circle time | Less than 15 Seconds | Guide ring load capacity | 350 Pieces |
Winding element load capacity | 280 Pieces | Material suited | CS/SS |
Pressed air supply | 0.5-0.8MPs |

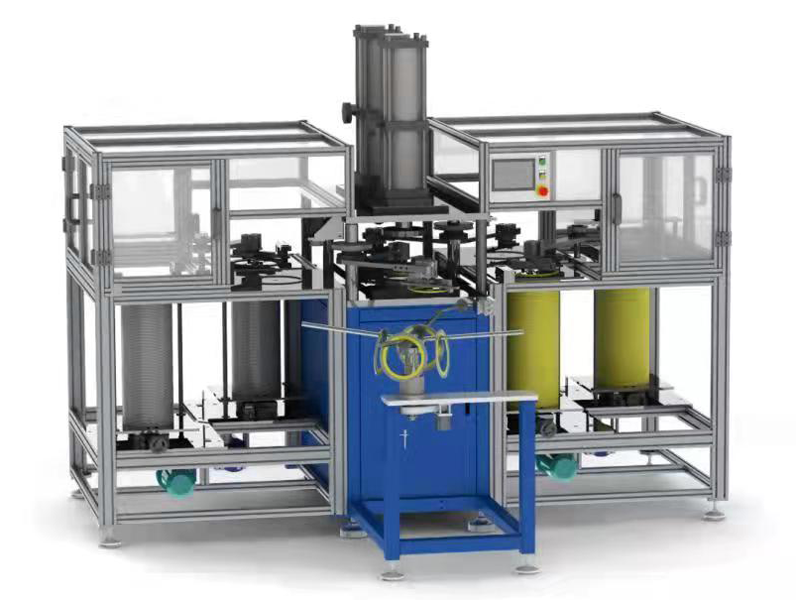

1. It is a fully automatic guide ring assembly machine, consist of 4 major parts, guide ring supply system, winding element supply system, automatic assembly system as well as gasket unloading system, controlled by PLC.
2. Both winding elements and guide ring supply system have two storages, one is under supplying, meanwhile another one can be reloading, and the gasket unloading system have 4 bars to hang the gasket, as soon as one is full, system will automatically switch to the next one, so operator can collect the gasket without stopping the machine, so the fully automatic winding machine can run constantly without stop for reloading.
3. Deployed 2 double arm picking robots and 2 single arm picking robots make cycle time less than 15 seconds.
4. Special designed quick changing mold, reduce set up time and change over time.
5. Use pressurized oil air cylinder provide pressure up to 5 tons, can assembly sizes from ½” up to 8” 150, cover all big volume items.
6. Durable assembly machine with simply and easy maintenance requirement.
