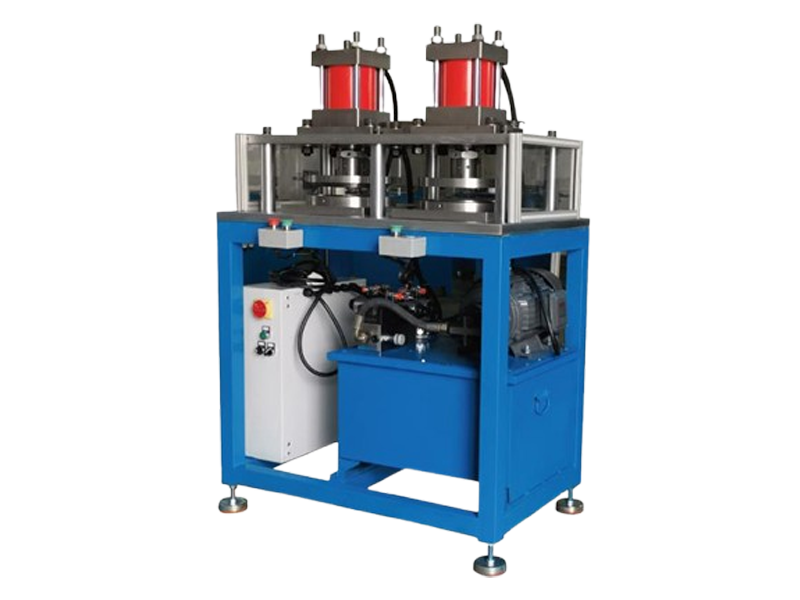

This is the o ring installation machine, a semi-automatic assembly device for guide rings. On the one hand, it is a mold that turns the guide ring into a conical shape, and on the other hand, it is a mold that flattens the guide ring. The dual-button operation is high; the mold adopts a quick change design, which is simple and convenient; the operation of the equipment is simple, and the operator does not need work experience; the assembly range is from 0.5 inches to 8 inches; the assembly time of a single piece is about 10 seconds, which is very efficient.
| Type | MGA-20 |
| Profile | 1060*900*1500mm |
| Net weight | 740KG |
| Motor power | 4KW |
| Voltage | 380V |
| Size scale | 1/2"– 8" |
| Volum count | Yes |
| Compress | Hydraulic power pack |
| Maximum pressure | 11 T |
| Circle time | 5-10 Seconds |
| Safe protection | Double switch |
| Guide light | Optional |
| Material suited | CS/SS |
| Hydraulic oil | ISO VG32 or above |
1. Deform the guide ring to cone shape, let winding element fit in, then press guide ring back to flat, guide ring assembled.
2. 2-step process, very simple to operate, it needs no skills for operators.
3. With double safe protection, double switch and guard light (optional as per customer’s request), the o ring installation machine well protects operators.
4. The spiral wound gasket machine features special designed quick changing mold, reduce set up time and change over time.
5. Hydraulic power pack provide maximum pressure up to 11 tons, can assembly sizes from ½” up to 8”, cover all big volume items.
6. Durable machine with simply and easy maintenance requirements.
7. Build in digital counter, record production volume.
