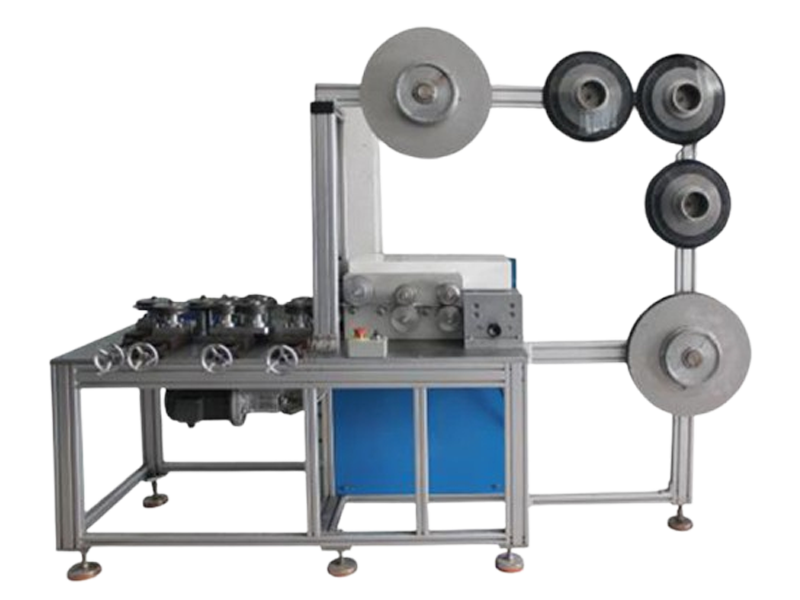

This is a machine that produces double jacket gaskets, with steel strip forming, graphite belt filling, steel strip edge wrapping, bending ring to product size; the maximum processing thickness is 4mm; the machine saves production materials to the greatest extent and improves production efficiency; the machine is simple to operate, easy to learn, and stable.
| Type | MDJ-23 |
| Machine profile | 2200*750*1720mm |
| Max occupation | 2300*800 mm |
| Net weight | 350 KG |
| Power supply | 2.2 KW |
| Drive motor | 2*1.1 KW |
| Voltage | 380 V |
| Work mode | Semi-automatic |
| Bending capability | Yes |
| Max Thickness | 4 mm |
| Line Speed | 0-200 mm/s |
| Material suited | SS & Alloy |
| Min Size can bend for 25mm width | 900 mm |
| Min Size can bend for 20mm width | 800 mm |
| Min Size can bend for 16mm width | 600 mm |
| Min Size can bend for 13mm width | 200 mm |
| Min Size can bend for 10mm width | 150 mm |
1. Double Jacket Machine is specially designed for making double jacket gasket, the double jacketed gasket machine can make the straight double jacket bar and bend to ring in one process.
2. Significantly improve the productivity and material utilization compare with the old machine.
3. With this machine hand, you can make all customized size of double jacket gasket, and all types of gasket.
