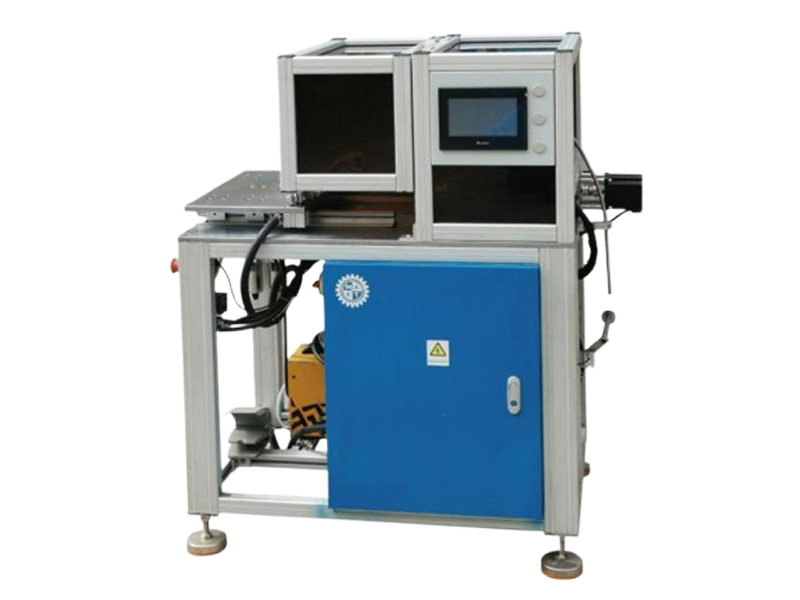

This is a semi-automatic argon arc welding machine, which mainly welds the guide ring and the inner ring; the operation is very simple, and the operator does not need to hold a welder's certificate; the maximum welding thickness is 4mm; the maximum welding width is 60mm; a high-power AC welding machine is used in the arc and argon welding machine, which can be welded on one side, which greatly improves the welding efficiency; by adjusting the welding parameters, different materials such as stainless steel and carbon steel can be welded.
| Type | MAW-27 |
| Profile | 1050*700*1580mm |
| Net weight | 260KG |
| Power | 2 KW |
| Voltage | 380V |
| Max welding thickness | 4 mm |
| Max flange width | 60 mm |
| Sutitable material | SS and CS |
| Argon Pressure mini | 0.5 Mpa |
| Max welding current | 185 Amp |
1. MAW-27 Argon arc welding machine is a semi-automatic welding machine, no need for specific welding skill, all need to do is load the ring and unload when job finish, make welding a easy job.
2. It needs weld only one side, one single process—the arc and argon welding machine simplifies welding with this one-step operation, and the ring forming machine complements it in the overall ring processing workflow.
3. It can weld both stainless steel and carbon steel by adjusting the parameter settings.
