High-performance graphite moulding machines produce precise, durable gaskets. Engineered for efficiency and versatility, they deliver consistent quality, meeting demanding industrial standards with robust construction.
Stores preset configurations for diverse graphite ring specifications; recall settings via coded profiles to eliminate repetitive calibration and accelerate batch transitions.
Integrated weight systems automatically measure and adjust graphite tape length during molding, ensuring consistent density (±5% tolerance) for uniform product quality cycle after cycle.
PLC-driven processes handle feeding, twisting, pressing, and sorting—reducing manual intervention while enabling high-volume output with quick mold changeovers .

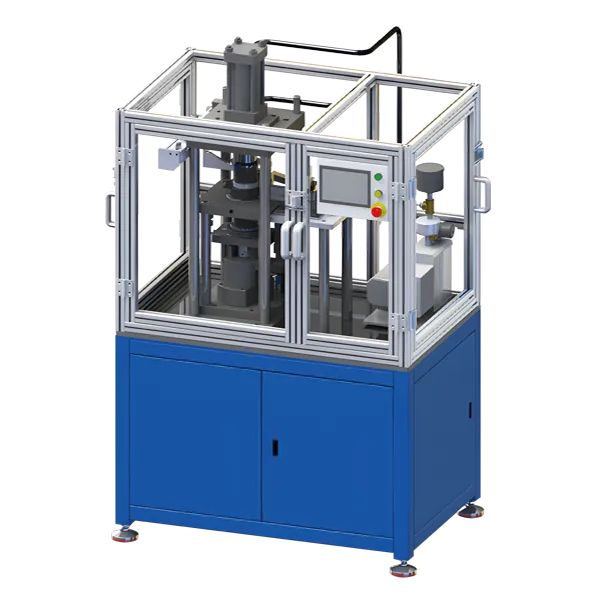

The Graphite Moulding Machine automates the production of high-density graphite rings with precision and efficiency. At its core, the machine operates by feeding graphite tape through an automated system that precisely measures and cuts predetermined lengths. A vacuum spindle then twists the corrugated graphite tape into a spiral configuration inside the molding die, ensuring uniform density and structural integrity—our gasket machine for sale integrates this precision molding process as a key feature. Hydraulic pressure compresses the material, while PLC-controlled dwell time guarantees optimal molding conditions. Key components like the tension-driven feeding system, adjustable spindle diameter, and weight-based feedback loop ensure consistent thickness and weight. The machine further streamlines production with a robotic transfer system that sorts finished rings based on real-time weight checks, while an HMI interface allows operators to store and recall parameter presets for different product specifications. This fully automated system—from material feeding to final product sorting—combines smart process control with hydraulic precision to deliver defect-free graphite components for industrial applications.
